TQ-DONOR-UHF
Donor Antenna
The DONOR-UHF-YAGI is a high-gain outdoor directional antenna designed to cover UHF frequencies in the 450–512 MHz range. Available in three tuned models (450–470, 470–490, and 490–512 MHz), the antenna delivers 11 dBi gain and is ideal for applications requiring long-range signal pickup, such as donor antenna installations in distributed antenna systems (DAS). The rugged construction and narrow beam width ensure optimized performance in outdoor environments. It supports either vertical or horizontal polarization and includes N-Female connectors for easy integration
Features
• UHF Band Coverage (450–512 MHz)
• High Gain: 11 dBi • Directional Yagi Design for Long-Range Reception
• Narrow Beam Width (44° Horizontal / 40° Vertical) • Dual Polarization: Vertical or Horizontal
• 50 Ω Impedance • Rated for Harsh Environments (134 MPH Wind Velocity)
• N-Female Connector
Documents & Resources
Related Products

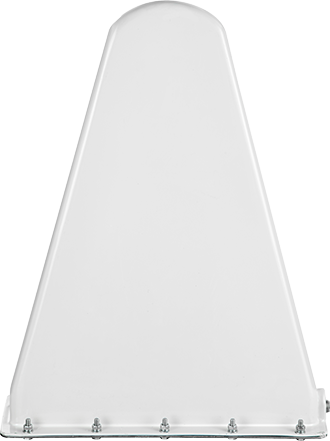

TQ-DONOR-UHF-8
